Deye Hybrid ACDC Solar Air Water Heater 300lt

The Deye 300L Hybrid ACDC Solar Air Water Heater is an advanced solar heat pump system designed for energy-efficient water heating. It harnesses both solar energy and ambient air to provide year-round hot water, significantly reducing electricity costs.

Key Features

100% Solar Operation During Daytime: Operates entirely on solar power during daylight hours without the need for batteries or an inverter.

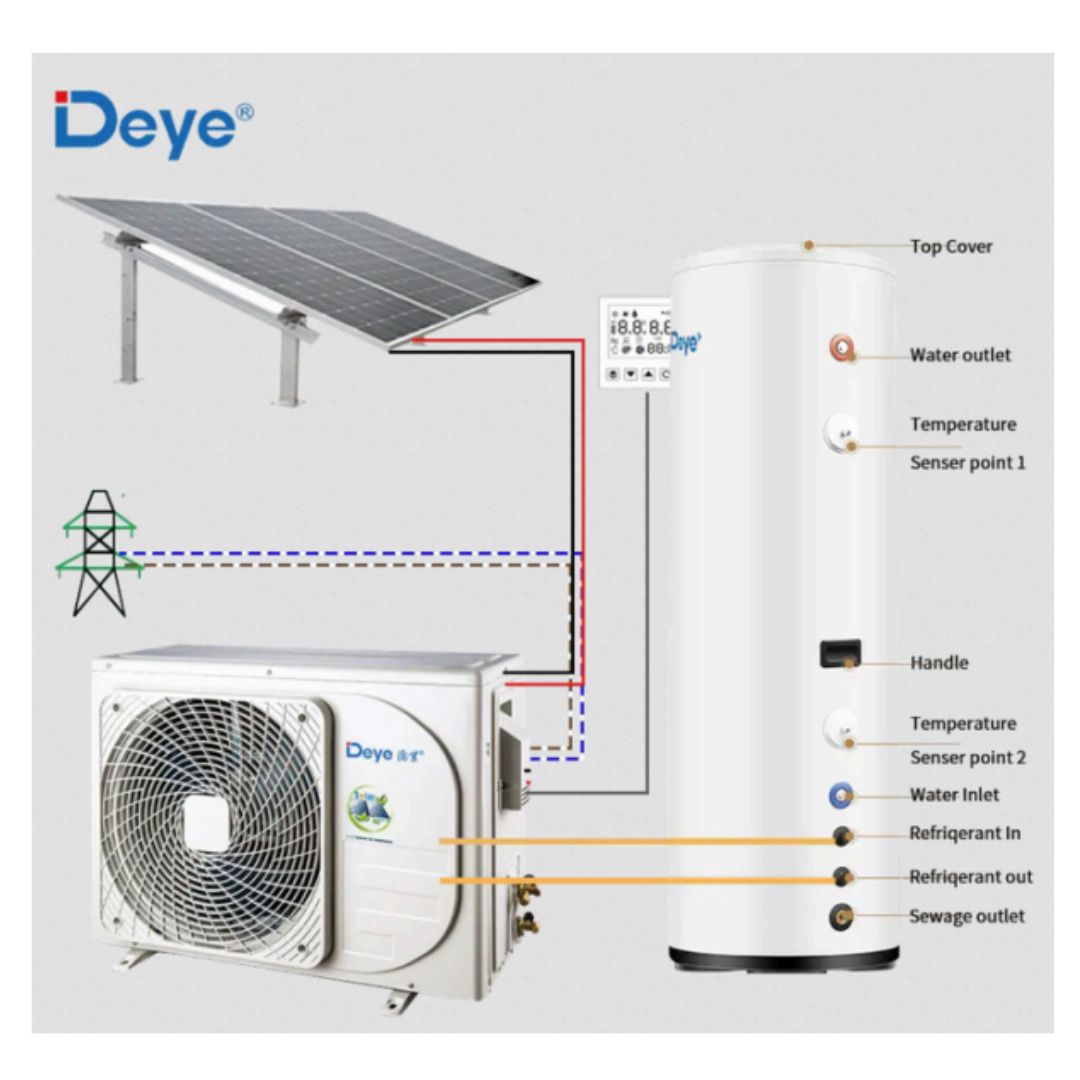

Hybrid Power Supply: Automatically switches between solar DC power and AC grid power to ensure continuous hot water supply, prioritizing solar energy.

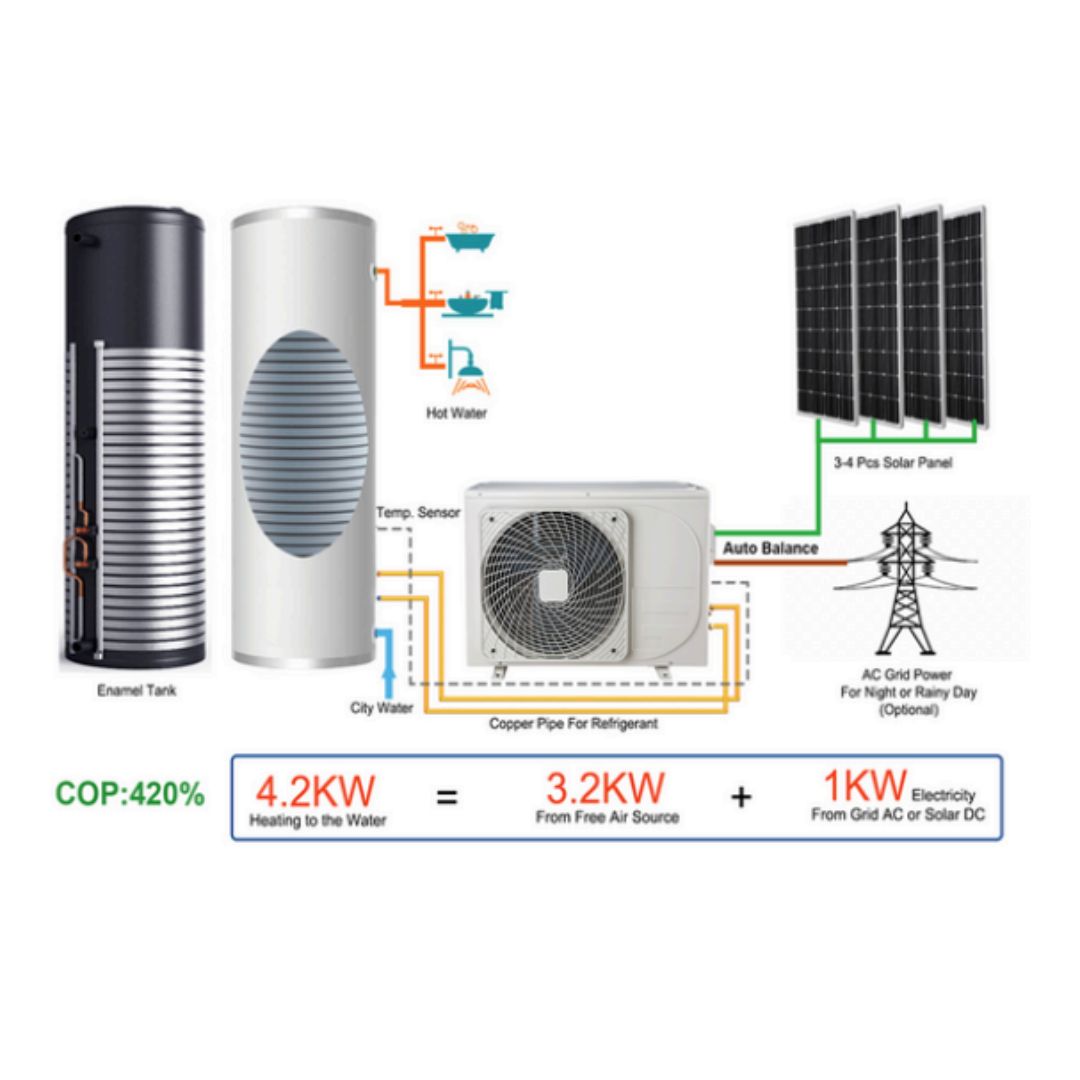

High Efficiency: Achieves a Coefficient of Performance (COP) of up to 4.2, meaning it can generate 4.2 kW of heat using only 1 kW of electricity.

Smart Controls: Equipped with Wi-Fi and Bluetooth capabilities for remote monitoring and control via the Deye Smart App.

Wide Operating Temperature Range: Functions effectively in ambient temperatures ranging from -10°C to 58°C, making it suitable for various climates.

No Additional Components Required: Does not require an external inverter, battery, or charge controller, simplifying installation and reducing costs.

Technical Specifications

Model: DRSA1-ACDC-41/300

Water Tank Volume: 300 liters

Heating Capacity: 4100W

Rated Power Consumption: 972W

Power Supply:

AC: 208–240V / 50–60Hz

DC (PV in Series): 80–380V

Refrigerant: R410A

Water Tank Net Weight: 92 kg

Outdoor Unit Dimensions (WxHxD): 802×564×323 mm

Water Tank Dimensions (WxHxD): 605×605×1915 mm

Water Inlet/Outlet Connector Diameter: DN20

Heat Exchanger Max. Pressure: 4.4 MPa

Maximum Water Pressure: 0.8 MPa

Water Heating Rate (15°C to 55°C): 88.1 L/h
